Showcase Home » Ski-Doo » Summit X 154 Rotax® 600 H.O. E-TEC
Model Quick Search

$10,199.00

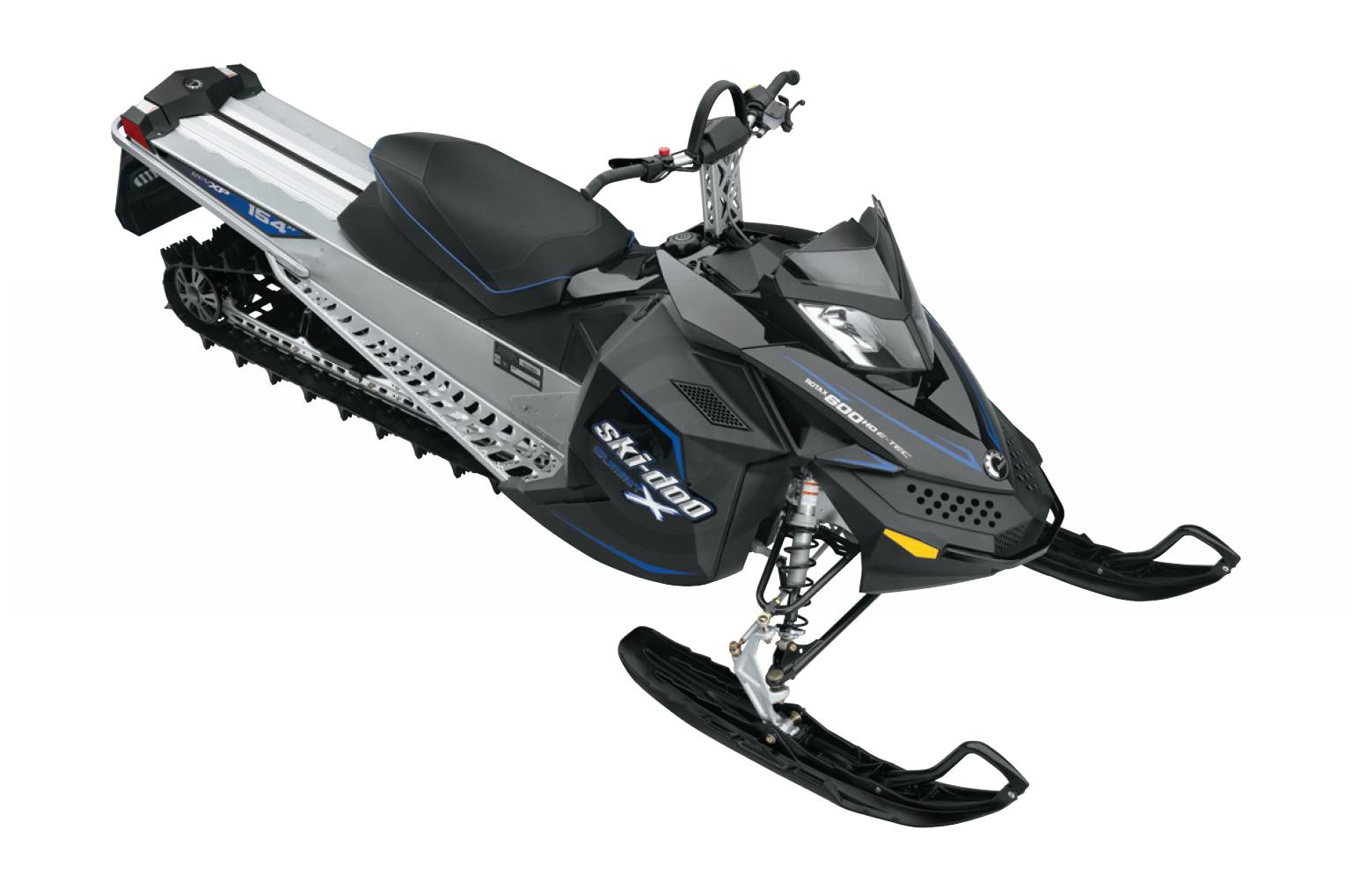

2009 Ski-Doo Summit X 154 Rotax® 600 H.O. E-TEC
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The ultimate mountain machine with race-bred lightweight and high performance features.

  • NEW E-TEC® technology choice
  • REV-XP platform
  • Brembo racing brake, braided line
  • Lightweight front suspension components
  • SC™-5M rear suspension
  • KAYABA‡ HPG™ T-A alu. shocks
  • Pilot™ 6.9 skis
  • Track length: 154 inch
  • REV-XP racing seat
  • Multi-function digital gauge w/ display
  • Riser block / Low windshield
  • RER™ electronic reverse
COLOR
  • Deep Black
ENGINE
  • Engine: Rotax 600 H.O. E-TEC
  • Engine details: Liquid-cooled, 3-D R.A.V.E.™
  • Cylinders: 2
  • Displacement: 594.4 cc / 36.3 in³
  • Bore: 72 mm / 2.8 in
  • Stroke: 73 mm / 2.9 in
  • Maximum engine speed: 8100 RPM
  • Carburetion: Electronic DI
  • Recommended fuel type: Regular unleaded
  • Minimum octane: 87
  • Fuel tank: 40 liters / 10.6 gallons
  • Oil tank: 3.7 liters / 3.9 quarts
  • Exhaust system: Single tuned-pipe, baffle muffler
POWERTRAIN
  • Drive clutch type: TRA™ III
  • Driven clutch type: QRS
  • Engagement: 3600 RPM
  • Clutches center distance: 258.7 mm / 10.18 in
  • Small sprocket number of teeth: 21
  • Large sprocket number of teeth: 45
  • Drive sprocket number of teeth: 8
  • Drive sprocket diameter: 183 mm / 7.2 in
  • Brake system: Brembo hydraulic brake & racing braided line
SUSPENSION
  • Front suspension: Dual A-arm front suspension
  • Front shock: KAYABA HPG T-A alu.
  • Front suspension max. travel: 229 mm / 9 in
  • Rear suspension: SC-5M
  • Front arm shock: KAYABA HPG T-A alu.
  • Rear arm shock: KAYABA HPG T-A alu.
  • Rear suspension max. travel: 381 mm / 15 in
DIMENSIONS
  • Vehicle overall length: 3310 mm / 130.3 in
  • Vehicle overall width: 1204 mm / 47.4 in
  • Vehicle overall height: 1000 mm / 39.4 in
  • Official dry weight: 191 kg / 422 lb
  • Ski stance: 1025 mm to 1080 mm / 40 to 42.5 in
  • Ski overall length: 1066 mm / 42 in
  • Ski width: 175 mm / 6.9 in
  • Track nominal width: 406 mm / 16 in
  • Track nominal length: 3923 mm / 154 in
  • Track profile height: 57.2 mm / 2.25 in
ADDITIONAL FEATURES
  • Skis: Pilot 6.9
  • Seating: REV-XP racing
  • Electric start: Optional
  • Reverse: RER
  • Speedometer: Standard
  • Electric fuel gauge: Standard
  • Mirrors: Optional
  • Windshield: Low
  • Handlebar: Riser block (205 mm / 8 in ) / Strap
  • Anti-slip running boards: Standard
NOTES:

BRP reserves the right at anytime to discontinue or change specifications, price, design, features, models or equipment without incurring any obligation.


Specifications

Engine
Engine Type Rotax 600 H.O. E-TEC, 3-D R.A.V.E.™
Displacement 36.3 cu. in. (594.4 cc)
Cylinders 2
Bore x Stroke 2.8" x 2.9" (72 x 73 mm)
Engine Cooling Liquid-cooled
Carburetion Electronic DI
Exhaust Single tuned-pipe, baffle muffler
Drivetrain
Brake Type Brembo hydraulic brake & racing braided line
Drive Clutch TRA™ III
Driven Clutch QRS
Suspension
Front Suspension Dual A-arm front suspension
Front Travel 9 in. (229 mm)
Rear Suspension SC-5M
Rear Travel 15 in. (381 mm)
Ski Type Pilot 6.9
Ski Stance 40 in. to 42.5 in. (1025 mm to 1080 mm)
Track Dimensions 154" x 16" x 2.25" (3923 x 406 x 57.2 mm)
General
Speedometer Standard
Fuel Capacity 10.6 gal. (40 l)
Dry Weight 422 lbs. (191 kg)
Windshield Low
Color Deep Black
Options
Electric Start Optional
Reverse RER
Mirrors Optional

Compare Models

 Print








Year 2009
Manufacturer Ski-Doo
Model Summit X 154 Rotax® 600 H.O. E-TEC
Style Performance
MSRP* $10,199.00
Drivetrain
Brake Type Brembo hydraulic brake & racing braided line
Drive Clutch TRA™ III
Driven Clutch QRS
Engine
Engine Type Rotax 600 H.O. E-TEC, 3-D R.A.V.E.™
Displacement 36.3 cu. in. (594.4 cc)
Bore x Stroke 2.8" x 2.9" (72 x 73 mm)
Cylinders 2
Engine Cooling Liquid-cooled
Carburetion Electronic DI
Ignition
Exhaust Single tuned-pipe, baffle muffler
Alternator
General
Speedometer Standard
Tachometer
Odometer
Headlight
Fuel Capacity 10.6 gal. (40 l)
Dry Weight 422 lbs. (191 kg)
Windshield Low
Color Deep Black
Warranty
Options
Electric Start Optional
Hand & Thumb Warmers
Reverse RER
Mirrors Optional
Suspension
Front Suspension Dual A-arm front suspension
Front Travel 9 in. (229 mm)
Rear Suspension SC-5M
Rear Travel 15 in. (381 mm)
Ski Type Pilot 6.9
Ski Stance 40 in. to 42.5 in. (1025 mm to 1080 mm)
Track Type
Track Dimensions 154" x 16" x 2.25" (3923 x 406 x 57.2 mm)

Current Promotions

There are currently no promotions available for this product.
